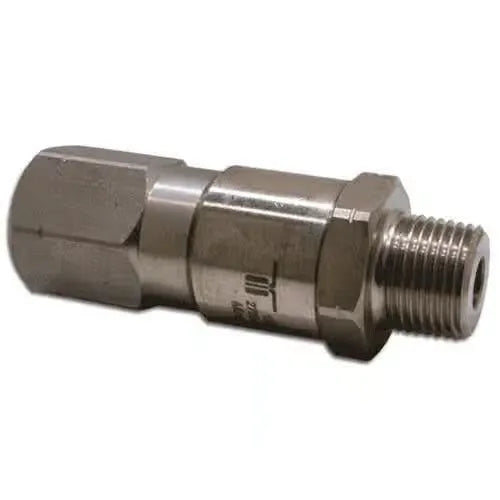

Mosmatic - DGV Swivel - 32.564 - G1 3/8"NPTM G2 3/8"NPTF

Mosmatic DGV Gun Swivel

The Mosmatic 32.564 swivel is made of nickel plated brass and stainless steel internal components for corrosion resistance and longevity. It utilizes a reinforced inner shaft with single bearing system, delivering consistent rotation even at high pressures. Thanks to these high-quality features, you can enjoy maintenance-free operation and reliable performance up to 4000 PSI and 250 degrees Fahrenheit!

Features

• Live Rotation - Engineered to rotate freely, continuously, and safely while fluid line is fully active and under pressure.
• Durability and Resistance - Nickel plated brass construction and stainless steel internal parts protect this swivel against corrosion and harsh chemicals and offer long life, even in demanding environments like car washing and pressure washing.
• Reinforced Inner Shaft - Protects against premature wear and breaking under high pressure and stress.
• Maintenance Free- Mosmatic swivels use self-lubricated bearings that do not require a regular maintenance schedule.

Product Details

• Manufacturer: Mosmatic
• Mosmatic SKU: 32.564
• Item: In-line high-pressure swivel

Specifications

• Length: 2.75"
• Body Construction: Nickel plated brass
• Internal Part Construction: Stainless steel
• Bearing Configuration: 1x thrust ball bearing
• Maximum Pressure: 4000 PSI
• Maximum Speed: 30 RPM
• Maximum Temperature: 250° Fahrenheit
• Operating pH Range: 3 to 12
• Connection Ports: 3/8" NPTM x 3/8" NPTF
• Seal Type: NBR (Buna) O-ring
• Wrench Size: .94"
• Nominal Width: 1/4"
• Mosmatic 28.973 Heat Shield available for use with this swivel
