MTM Hydro  |  SKU: 041681770196

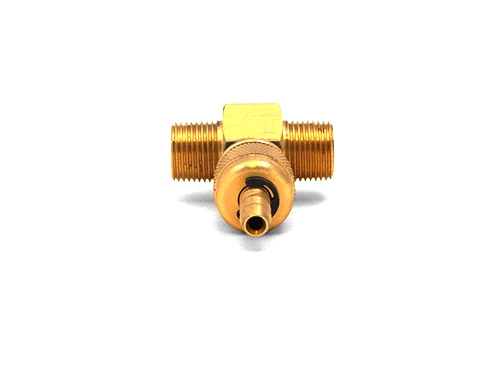

Chemical Injector - 2.3 Adjustable

$2112
Shipping calculated at checkout.


Description

MTM Hydro's Fixed Chemical injectors were developed for use in a downstream chemical injection system. Downstream refers to 'after the pump and unloader' where the injector operates through the use of the Venturi effect. When the low-pressure side of a dual lance is opened, the chemical injector's orifice is, then, the point of restriction which immediately creates a vacuum and begins drawing chemical. All MTM Hydro chem injectors have a maximum chemical draw of 20% of the flow through the injector, although with various points of restriction through an average system, actual flow is estimated at 12%-18%.

Size your Chem Injector by the GPM restriction and be sure to note whether you are looking for a specific version. Standard Chemical Injectors are fixed which means they are not adjustable to increase or decrease the flow of chemical and have a Stainless Ball, Seat, and Spring for corrosion resistance. Acid Chem Injectors look the same although they boast an enhanced corrosion resistance due to the inclusion of a Ceramic ball and Inconel Stainless Steel seat. If you are looking for an adjustable chem injector, this will allow you to change your flow of chemical into your high-pressure line from 20% to as low as 3%.

  • 3/8" Male NPT Inlet x 3/8" Male NPT Outlet
  • Max - 3.3 to 6.5 GPM
  • Max - 3,600 PSI
  • Max - 300° F
